FUTURA OPEN MOUTH BAGGING LINE
Full Automatic Bagging Line for Open Mouth Bag Type.
Bag Stacking – Bag Picking – Bag Filling – Bag Closing.
Net weigh for 10-50 KG bags for flour. Paper and PP woven bags. Output up to 300 bags/h.
- Bag Turner
- Bag Flattener
- Metal Detector
Fill spout dust collection manifold, for vacuum distribution and collection of any dust produced during the bag filling process.
Applicator for 60mm wide crepe tape, 70 mm wide tape available on request. The bag top is first trimmed for correct application of the crepe tape.
Bag turner to lay bags flat for in-line discharge.
OPTIMA VALVE BAGGING LINE
Full Automatic Bagging Line for Valve Bag Type
Each OPTIMA is capable of a typical production speed of between 240-300 bags/hour depending on the type of product and bag. If higher production rates are required, a battery of up to 4 machines may be placed in line for production speeds of between 1000-1200 bags/hour.
- Auger agitator device to assist with product flow
- Motor driven, cam actuated, bag support vibrating system
- Integrated dust collection connection
- Pneumatically actuated bag holders
- Auger with quick change mechanism
- Bag support with manual height adjustment
- TRANSFER Automatic Bag Placing Unit
- Automatic Bag Chair Adjustment
- Automatic Bag Kick off onto take-away conveyor
- Integrated bag vibration to obtain an optimum settlement of the product inside the bag

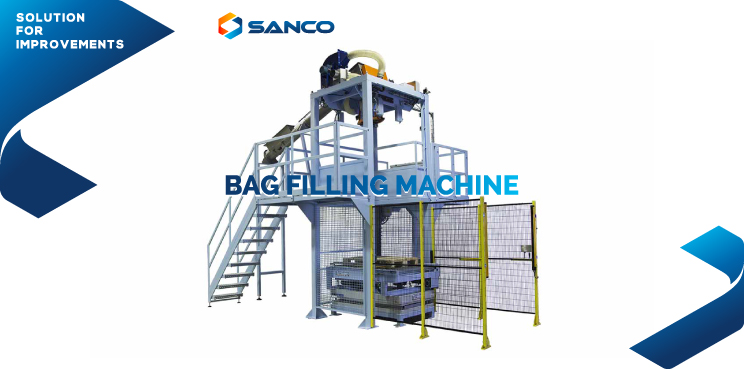

Weighing – Filling Station for Jumbo Bag
The “BIG-BAG” weighing-bagging plant was conceived for the bagging of any kind of product, either granules or powders, into 500 kg to 1500 kg polypropylene raffia big-bags; other big-bag capacities are also available upon request.
The plant is made by: a specific dosing system for every kind of product to be bagged; a weighing mount supported by 4 flexure loading cells connected to the weighing control and management electronic central unit; the same mount is fitted with 4 automatic hooks holding the big-bag loops; a bag-spoutwith spout tightening system prevents emission of dusts originated during the filling phase.
The operator has thus only the task to fit the bag mouth to the bag-spout and to hang the loops to the suitable hooks.
Once ended the filling phase a bag lifting system made by an hydraulically actuated platform lifts the big-bag by loosening the loops stretch and by thus enabling the automatic hooks to release them. The lifting system will then convey the big-bag to the unloading position.
Output Speed: 12 – 20 Bag/Hour
Power: 5.5 kW
Working Pressure: 6 Bar
Consumption: 120 Nl/min
Semi Automatic Bagging Line for Open Mouth Bag Type.
The Semi-automatic sewing system are composed by a supporting column for the sewing head, the sewing head and the thread cutting device. Besides of that, can be featured of several optional like: chain infeed, label dispenser, creepe tape applicator, top folding device, double sewing head.
