- Four side seal multilanes machine with 1000 mm reel width
- 30 percent less working space and energy
- Double capacity
- Maximum reel diameter: 800 mm
Four Side Seal Multilanes
- High level four side seal packaging machines with continuous cycle
- Efficient components that can guarantee double performance
- Minimal maintenance
- Highly compact configuration
- Various types of dosing units for liquid, granular, powder products, etc

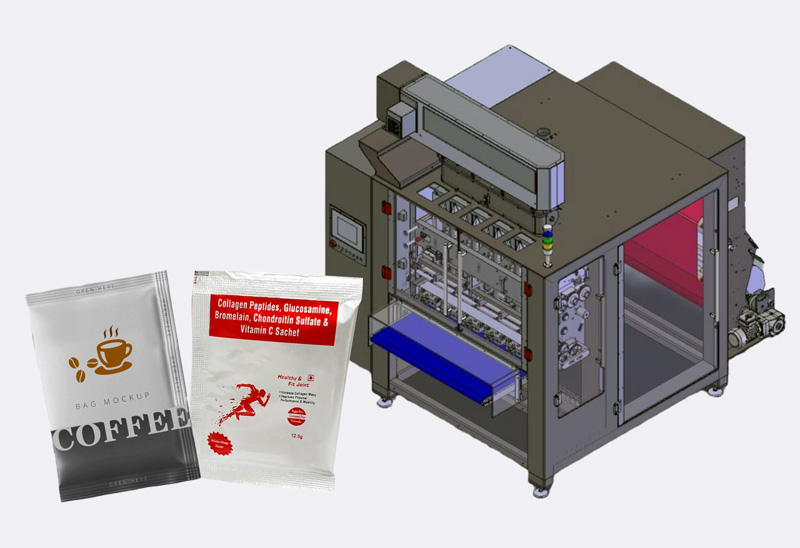

Stick Pack Multilanes
The Stick Pack Multilanes packaging machine for powder products is fitted with batching device featuring multi-row augers designed for powder that has trouble sliding.
Each auger is controlled by a custom-made brushless motor.
Ensures an accurate and separate adjustment of the dose on each line.
Upon request, the system of the Stick Packaging Machine can be fitted with a pre-feeding unit that ensures a constant level in the batching hopper, thereby guaranteeing the accuracy of the requested dosage.
- No of lines: from 2 to 20
- Max reel diameter: 500 mm
- Max reel length 1200 mm
- Bag length: variable from 30mm to 250 mm
- Bag width: variable from 15 mm to 150 mm
- Production speed: up to 80 cycles/min
- Max volume that can be packaged: 300 ml
- Drive unit: Brushless motors + pneumatic
